Industrial Building Board

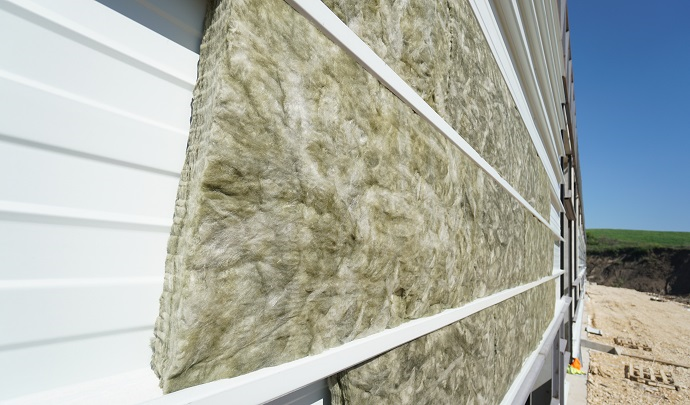

It is used for thermal insulation purpose between two metals on roofs and sidewalls of metal buildings which are installed on-site. Natural characteristics of mineral wools contribute to sound insulation. It provides fire safety with its class A1 non combustible property. It has a silicon additive, so it does not include water to its structure.

Download Product Brochure
Find Closest Dealer

Material Safety Forms

İZOCAM_GW_MSDS_EN

Technical Specifications

Properties Symbol Unit Description Tolerance Standard
Material - - Material Wool - TS EN 13162
Width b mm 600 +/-1,5% TS EN 822
Length l mm 1200 +/-2% TS EN 822
Thickness d mm 50 60 80 100 120 T3(**) TS EN 823
Facing - - Uncoated - -
Reaction to fire - - A1 - TS EN 13501-1
Squareness Sb mm/m max.5 - TS EN 824
Flatness Smax mm max.6 - TS EN 825
Dimensional Stability Δεd % max.1 - TS EN 1604
Thermal Conductivity (10 °C) ʎD W/m.K 0.037 - TS EN 12667/12939
Thermal Resistance RD m2.K/W 1,35 1,60 2,15 2,70 3,20 - TS EN 13162
Maximum Service Temperature - °C 250 - -
Specific Heat (*) c kJ/(kg.K) 0.84 - EN 12524
Short Term Water Absorption by Partial Immersion Wp kg/m2 ≤ 1 - EN 1609
Long Term Water Absorption by Partial Immersion Wlp kg/m2 ≤ 3 - EN 12087
Water Vapor Diffusion Resistance (*) µ - 1 - TS EN 12086
Dynamic Elasticity (*) Edyn kN/m2 0.8 - DIN 52214
Packaging Material - - PE Film+PE Sleeve - -
Application Area It is used for thermal insulation in the roofs and sidewalls of metal buildings which are installed on-site.
Remarks The products are water- repellent and contain silicon.

(*) Literature Value (**)T3: -3% or -3mm ; +10% or 10mm.

The biggest value is choosed at minus tolerance, The smallest value is choosed at + tolerance.
