Industrial Building Board

It is used for thermal insulation purpose between two metals on roofs and sidewalls of metal buildings which are installed on-site. Natural characteristics of mineral wools contribute to sound insulation. It provides fire safety with its class A1 non combustible property. It has a silicon additive, so it does not include water to its structure.



Download Product Brochure
Find Closest Dealer

Application Area

  • By spreading a coat of nylon cover on corrugated metal sheet of the roof as a vapor barrier, its joints are overlapped 10 cm and glued.
  • Industrial Building Board is placed on vapor barrier layer. The application is completed with metal cladding.
  • One layer of nylon cover is laid on corrugated metal roofing sheet as a vapour barrier.
  • It is overlapped at the seams by 10 cm.
  • and adhered to the surface.

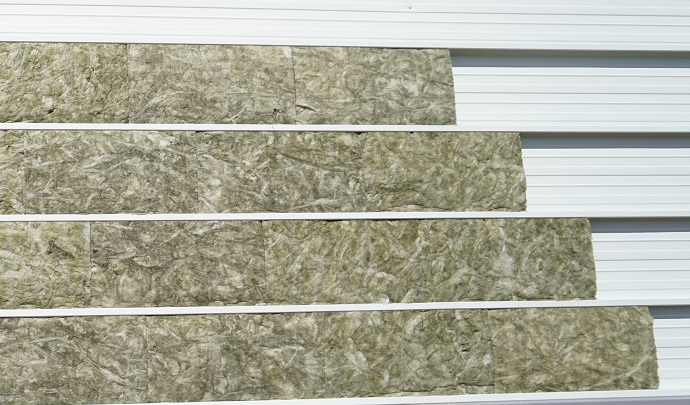

  • On top of vapour barrier layer, Industrial Building Board is placed.
  • The application is completed by metal cladding.
  • Applying acoustic band in front of the spacers is recommended in order to prevent sound and thermal bridges where metal pieces come in contact to each other.

Material Safety Forms

İZOCAM_GW_MSDS_EN

Technical Specifications

Proporties Symbol Unit Description Tolerance Standard
Material - - Mineral Wool - TS EN 13162
Width b mm 600 +/-1,5% TS EN 822
Lenght l mm 1200 +/-2% TS EN 822
Tickness d mm 50 60 80 100 120 T3(**) TS EN 823
Facing - - Uncoated - -
Reaction to fire - - A1 - TS EN 13501-1
Squareness Sb mm/m max 5 - TS EN 824
Flatness Smax mm max 6 - TS EN 825
Dimensional Stability Δεd % max 1 - TS EN 1604
Thermal Conductivity (10 °C) ʎD W/m.K 0.037 - TS EN 12667/12939
Thermal Resistance RD m2.K/W 1,35 1,60 2,15 2,70 3,20 - TS EN 13162
Maximum Service Temperature - °C 250 - -
Specific Heat (*) c kJ/(kg.K) 0.84 - EN 12524
Short Term Water Absorption by Partial Immersion Wp kg/m2 ≤ 1 - EN 1609
Long Term Water Absorption by Partial Immersion Wlp kg/m2 ≤ 3 - EN 12087
Water Vapor Diffusion Resistance (*) µ - 1 - TS EN 12086
Dynamic Elasticity (*) Edyn kN/m2 0.8 - DIN 52214
Packaging Material - - PE Film+PE Sleeve - -
Application Area It is used for thermal insulation in the roofs and sidewalls of metal buildings which are installed on-site.
Remarks The products are water- repellent and contain silicon.

(*) Literature Value (**)T3: -3% or -3mm ; +10% or 10mm.

The biggest value is choosed at minus tolerance, The smallest value is choosed at + tolerance.
